In modern construction, requirements for structural strength, space optimization, and faster construction schedules are becoming increasingly important. Therefore, alongside traditional structural systems such as reinforced concrete and steel structures, Steel–Concrete Composite Structures are being adopted more widely in large-scale projects.
This structural system combines the advantages of both steel and concrete to improve load-bearing performance, enhance durability, and optimize construction costs. Thanks to its ability to achieve long spans, reduce structural weight, and improve construction efficiency, composite structures are commonly used in high-rise buildings, bridges, industrial facilities, and modern infrastructure projects.
So, what exactly is a Steel–Concrete Composite Structure, and what are its key characteristics? Let’s explore in the article below.
Learn more: REINFORCED CONCRETE STRUCTURE (RC STRUCTURE)
A Steel–Concrete Composite Structure is a structural system in which steel and concrete components are connected so they can work together simultaneously to resist loads. Instead of functioning independently, these two materials are combined to maximize the advantages of each, creating a more efficient and economical structural system.
This is one of the most widely used solutions in modern construction, especially for high-rise buildings, bridges, and long-span structures.
Learn More: Comparison Between Steel Structures and Reinforced Concrete Structures
A typical Steel–Concrete Composite Structure is formed by multiple components working together to ensure structural strength and composite action between steel and concrete. The main components include:
The steel beam is the primary load-bearing member of the composite structural system. Its role is to receive and transfer loads from the slab to columns or other supporting structural elements.
Steel beams are commonly fabricated using hot-rolled steel sections such as I-beams, H-beams, or welded built-up sections made from steel plates. Thanks to their high strength and lighter weight compared to concrete, steel beams help reduce the self-weight of the structure and allow for longer spans.
The concrete slab is the component directly connected to the steel beam to create composite action between the two materials. The slab may be constructed using cast-in-place concrete or precast concrete panels depending on project requirements and construction methods.
During structural operation, the concrete primarily resists compressive forces, maximizing the mechanical properties of the material and improving the load-bearing capacity of the entire floor system.
In addition, the concrete slab:
Shear connectors are the most critical component in a Steel–Concrete Composite Structure, ensuring that the steel beam and concrete slab act together as a single structural unit.
Their main function is to transfer shear forces between steel and concrete and prevent relative slip when the structure is subjected to loads. Without shear connectors, steel and concrete would behave independently and the composite effect would not be achieved.
The most common type of shear connector today is the headed shear stud. Other options include:
The arrangement, spacing, and size of shear connectors directly affect the structural strength and safety of the project.
In many modern projects, composite floor systems also utilize steel decking. These are thin cold-formed steel sheets profiled with ribs or corrugations for additional stiffness.
During construction, steel decking acts as permanent formwork to support fresh concrete, reducing the need for traditional formwork and shortening construction time.
After the concrete hardens, the steel deck continues to contribute structurally as tensile reinforcement for the slab, improving the efficiency of the composite system.
In addition, steel decking helps:
The fundamental principle of composite structures is to combine the advantages and overcome the weaknesses of both materials:
In a typical composite member such as a composite beam:
To ensure these two components work together as a unified structural element, they must be firmly connected using shear connectors. These connectors — typically headed studs — prevent relative slipping between the steel beam and the concrete slab, ensuring full composite action between the two materials.

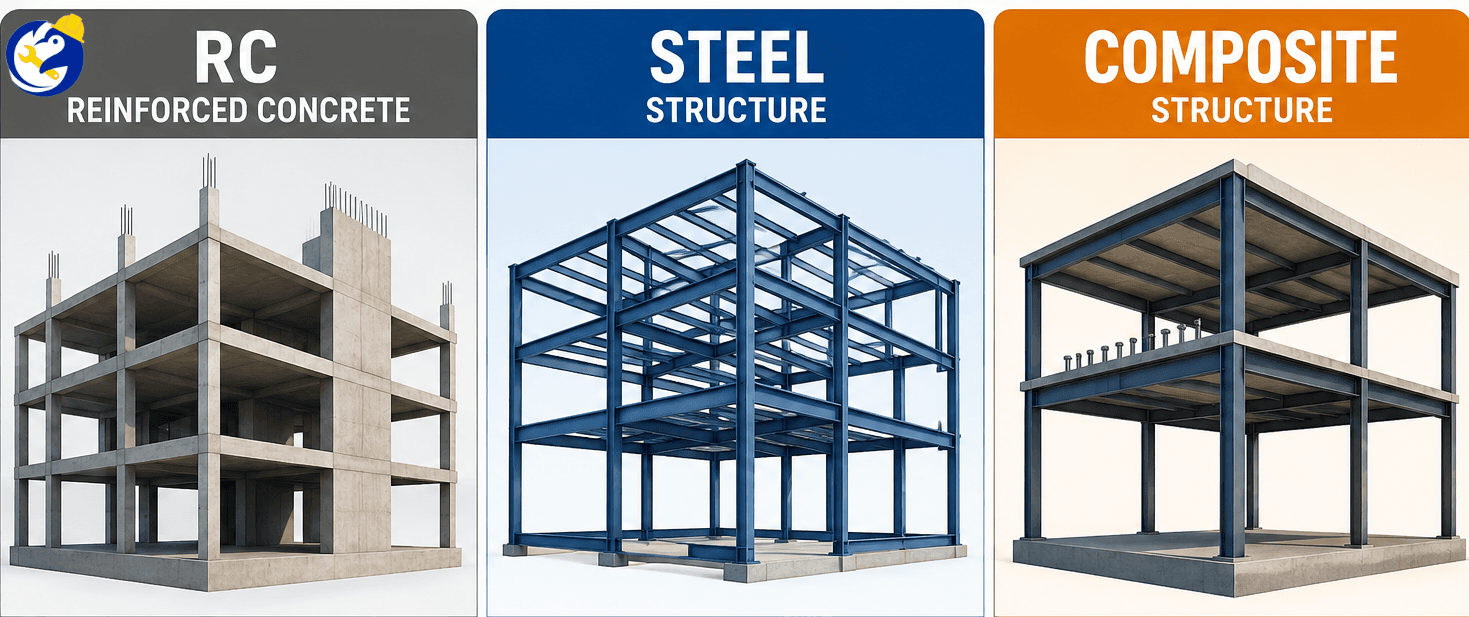

Learn more: DIFFERENTIATING 3 COMMON STRUCTURAL SYSTEMS IN CONSTRUCTION: RC, STEEL & COMPOSITE STRUCTURES
Compared to traditional steel structures or reinforced concrete structures, Steel–Concrete Composite Structures offer many significant advantages in terms of structural performance, construction efficiency, and cost optimization.
By combining the tensile strength of steel with the compressive strength of concrete, composite structures achieve greater stiffness and load-bearing capacity than either material working independently. This makes the structure more stable and suitable for large-scale projects.
Composite beams can be designed with smaller depths while still maintaining excellent structural performance. This helps optimize usable space, reduce floor-to-floor height, and lower costs related to façades and MEP systems.
Composite structures allow for larger open spaces with fewer columns, making them ideal for:
Steel components are typically prefabricated in factories and rapidly assembled on-site. In addition, the use of steel decking reduces traditional formwork requirements and significantly shortens construction time.
Although steel materials may have higher initial costs, the reduction in structural weight, foundation optimization, and shorter construction schedules help composite structures deliver strong overall economic efficiency for the entire project.
The concrete layer surrounding or integrated with steel components helps protect the steel from high temperatures during a fire, improving fire resistance and increasing overall structural safety.
Despite their many advantages, Composite Structures also have some limitations that should be considered.
The design and implementation of composite structures require advanced technical expertise, especially in:
Costs associated with steel materials, specialized connectors, and advanced construction technologies can be higher than those of conventional reinforced concrete structures.
Because steel and concrete are tightly integrated, dismantling, repairing, or strengthening composite structures is often more complicated and expensive.
Composite Structures are an excellent example of how construction engineering continuously seeks to optimize material performance. By intelligently combining the compressive strength of concrete with the tensile strength of steel, this solution not only creates durable and safe structures but also delivers high economic and architectural value, meeting the increasingly demanding requirements of modern construction.
